ProTone T32

3-way tri-amped line array element

ProTone T32 is a 3-way Tri-amped line array element that forms large size touring and installation sound systems. Joint use of ProTone T32 with subwoofer ProTone T28 creates a perfect full-featured sound system.

Low frequency part includes two powerful neodymium 12” loudspeakers. Four 6” loudspeakers emit medium frequency range and deliver clear voice and acoustic instruments sound. These 6,5” loudspeakers have light moving elements and original acoustic design. High frequencies are radiated by two neodymium compression drivers with 3” membranes; drivers have directivity of 90x8 degrees and are fixed to waveguides of original shape.

The cabinet is made of 18mm plywood and has integral rigging system, which helps both fix the line array into stack and hang it up. Loudspeakers are well-protected by perforated steel sheets covered with powder coat. Acoustically transparent polymer foam saves from weather impact.

Components
LF 2X12" 300mm,
MF 4x6,5" 165mm,
HF 2X3" 75mm
Frequency Response, Hz -3dB
55-18000
Power handling, W (AES)
1200/1000/180
Impedance, ohm
2X8 Ω/8 Ω/16 Ω
Sensitivity, db
100/103/113
SPL 1m
131/133/138
Horizontal/ Vertical Coverage
90/8°
Conector
2хNeutrik SpeakON® NL8
Size HxWxD mm
373х800х700
Weight, kg
72
T32 01
T32 02
T32 03

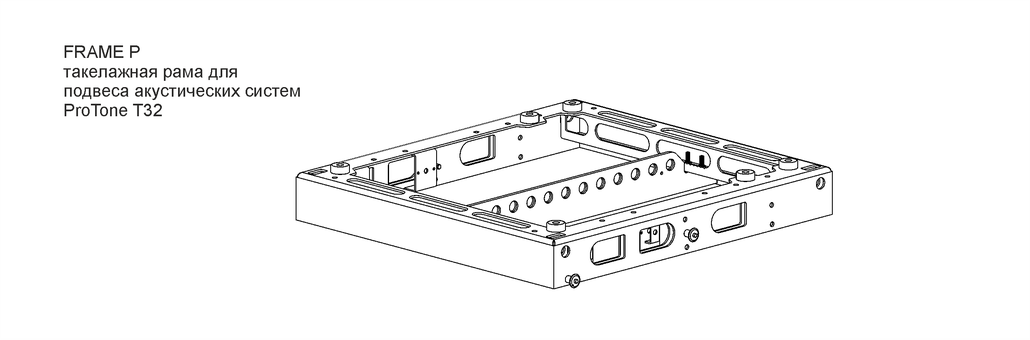

Framepx

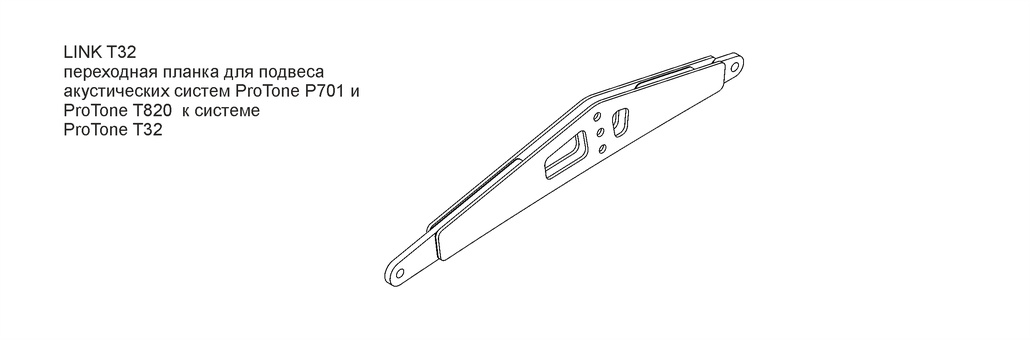

Link t32x

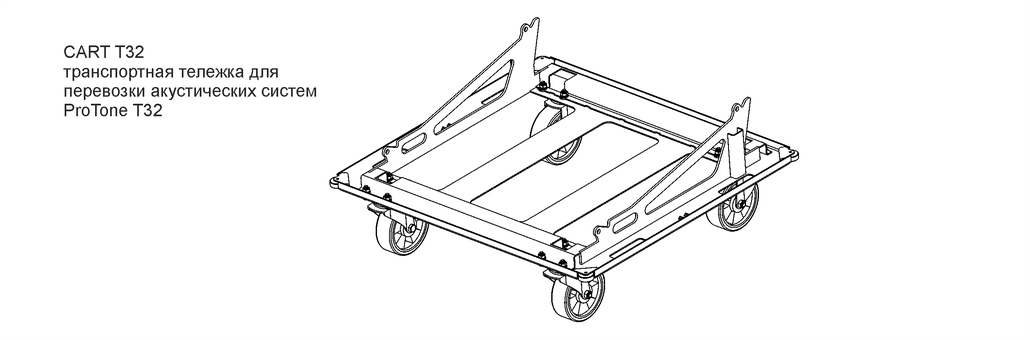

Cart t32x
Available to download:
